Barn Packages

Blueprint for a barn layout with labeled stalls, feed/tack rooms, wash rack, breezeway, trailer parking, and loading/unloading area.

Standard Horse barn

12x12 stalls, Feed/Tack 12x12 room.  12x12 sections to add wash rack, dedicated tack, storage, etc.  Optional lean to and walk through for easy trailer loading and trailer storage right next to the barn.

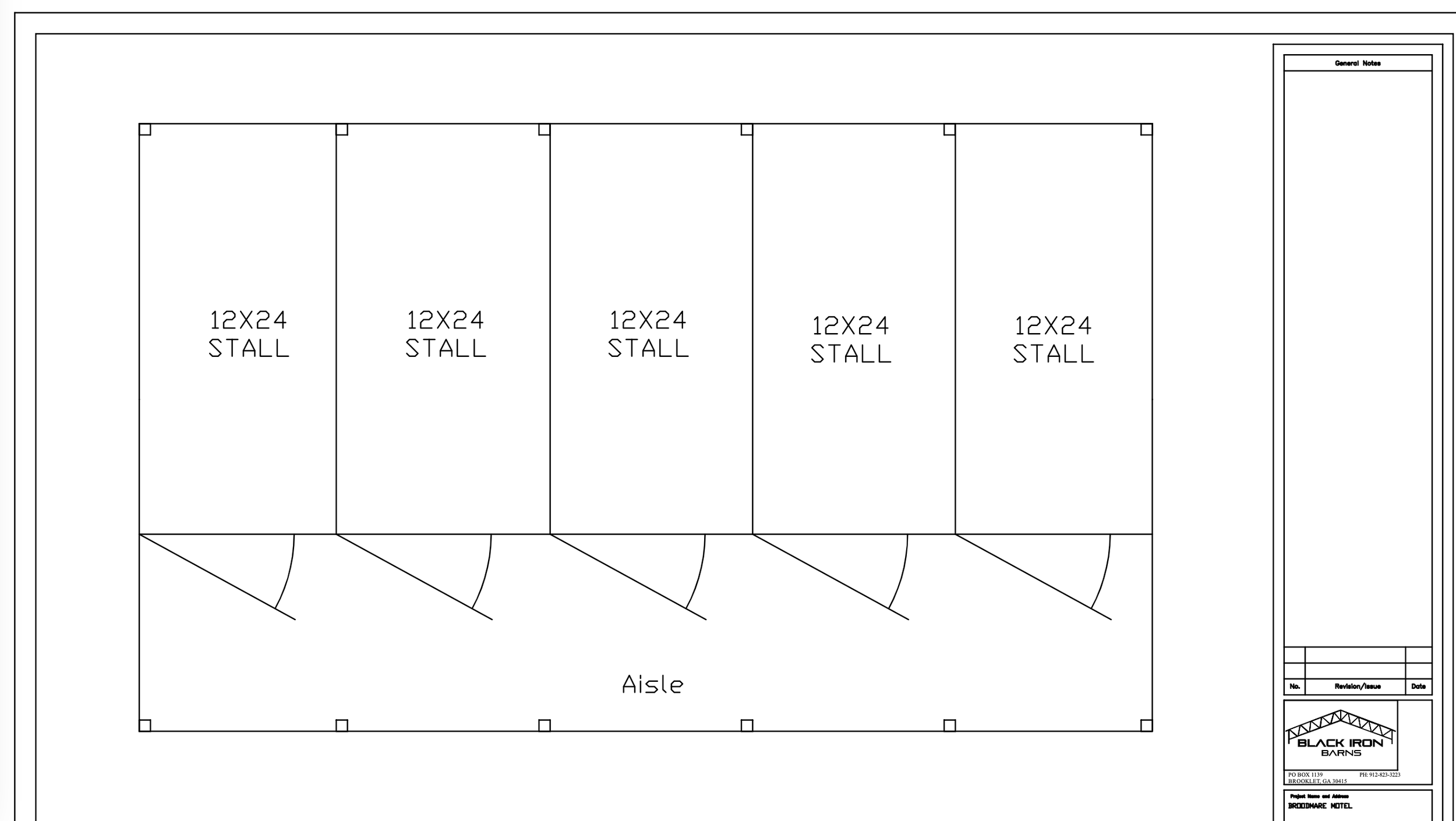

Blueprint drawing of a storage building layout with five 12x24 stalls, an aisle in front, and notes for general construction.

Mare motel

12x16 or 24ft stalls, fronts open to elements or closed in.

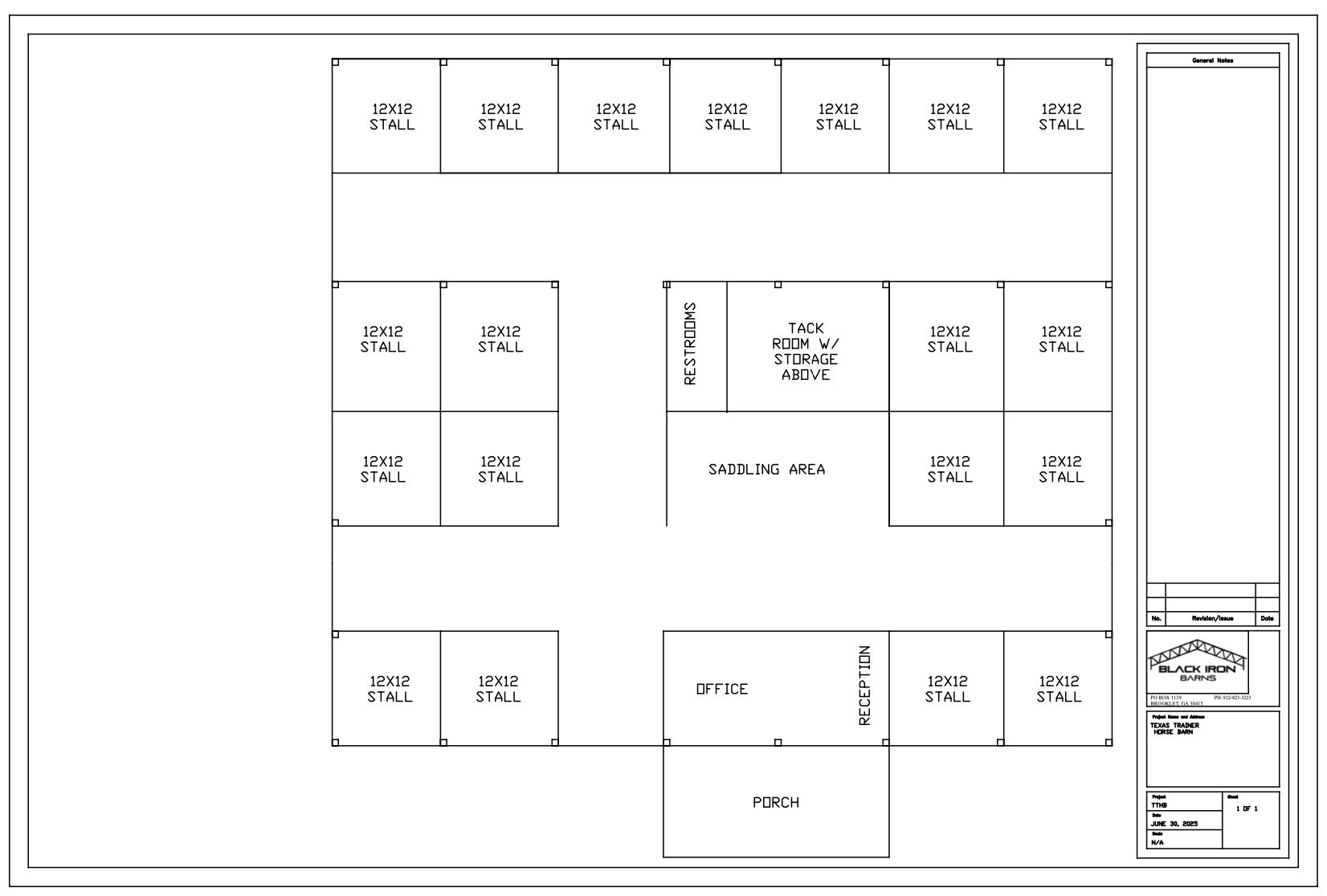

Architectural blueprint of livestock barn with stables, tack room, restrooms, office, reception, porch, and storage areas.

Trainer Barn

Standard barn features with additional options.  double aisles, T configurations, trailer parking, tractor parking, apartments, storage closets for blankets, tack, show stall decor, client locker room (their show stuff) etc.

Blueprint of a horse barn layout with stalls, wash rack, feed/tack rooms, breezeway, attached trailer parking, and optional loading/unloading area.

Breeding Barn

Stalls of various sizing, stocks, lab, breed dummy, etc.

Floor plan showing five 12x24 stalls arranged in a row in a barn, labeled as 'Aisle' in front.

Ranch Barn

Ride in design, ties, bunkhouses, optional cattle pens adjoining, etc

Architectural floor plan of a horse barn, showing stalls, tack room with storage above, restrooms, saddle area, office, reception, porch, and general notes.

Vet Clinic Barn

Reception, offices, stocks, labs, stalls, etc.
